Wearable HRV Accuracy Validation Protocol (Step-by-Step)

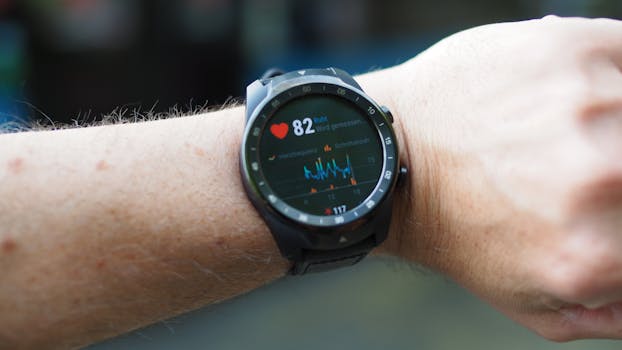

What you’re validating and why it matters

When you track heart rate variability (HRV) on a wearable, you’re trusting a chain of steps: sensor signal quality, beat detection, artifact filtering, and the HRV metric calculation. A wearable HRV accuracy validation protocol helps you test whether that chain is producing values that are stable, reproducible, and consistent with your expectations under controlled conditions.

Your goal is not to “win” against a lab device every time. Your goal is to confirm that your wearable is measuring HRV in a way that’s reliable enough for your use case—training readiness, recovery trends, stress monitoring, or clinical-adjacent tracking.

You’ll validate accuracy in three layers:

• Signal integrity: Are you getting clean beat-to-beat data?
• Metric stability: Do HRV values stay consistent when conditions are similar?
• Cross-check plausibility: Do your wearable HRV trends match what you’d expect from physiological changes and, when possible, an external reference?

Done well, this protocol gives you confidence to interpret your HRV curves and to set thresholds that won’t collapse every time you sleep poorly or move around.

Preparation: what you need before you start

Before you validate anything, set up a repeatable test environment. HRV is sensitive to motion, skin contact, temperature, breathing pattern, caffeine, and even how you wear the device.

1) Choose your wearable and your HRV metric

Use one wearable for the validation run. HRV can be reported as different metrics (commonly RMSSD or SDNN). Pick the metric your device displays (or exports) and validate that exact metric consistently.

Example: If your app reports “RMSSD (ms)” nightly, use RMSSD for all comparisons. Don’t switch between RMSSD and SDNN mid-protocol.

2) Decide on a reference method

A “true” accuracy check ideally uses an ECG or a validated chest-strap system that outputs R-R intervals (or exports usable beat-to-beat data). If you don’t have that, you can still validate reliability (repeatability and plausibility) using controlled physiological maneuvers and careful conditions.

Soft reference options you may already have:

• Chest strap HR sensor that provides R-R intervals or HRV export (often more stable than wrist during movement).
• Medical-grade or research-grade ECG if available through a clinic, lab, or research study.
• Another wearable for trend alignment (useful for plausibility, not absolute accuracy).

If you have a chest strap, it’s often a practical step-up for beat detection stability. Some people pair a wrist wearable (for comfort and continuous tracking) with a chest strap (for validation sessions).

3) Set up an observation window

Plan for at least 7 days of data collection, plus 2–3 controlled sessions on separate days. HRV varies day to day. One session rarely tells the whole story.

Minimum viable plan: 3 days of baseline + 2 challenge sessions + 2 days to confirm recovery back to baseline.

4) Prepare your environment and routine

Choose a consistent testing time (for example, 7–9 PM), and keep these variables as stable as possible:

• Room temperature (avoid extremes; aim for comfortable indoor conditions)
• Seated vs lying position (pick one for validation sessions and stick to it)
• Caffeine and alcohol timing (avoid caffeine for 6–8 hours before tests)
• Heavy exercise timing (avoid intense workouts for 12–24 hours before baseline sessions)
• Sleep timing (for nightly validation, keep bedtime within 1 hour across days)

5) Get your wearable settings consistent

Turn on HRV tracking, ensure the watch/strap is charged, and use the same fit every time. If your wearable has a “sleep mode,” “fitness mode,” or “continuous HRV,” keep it consistent.

Also ensure you’re not changing wrist placement. Wear it at the same spot, with the same tightness, and avoid loose contact.

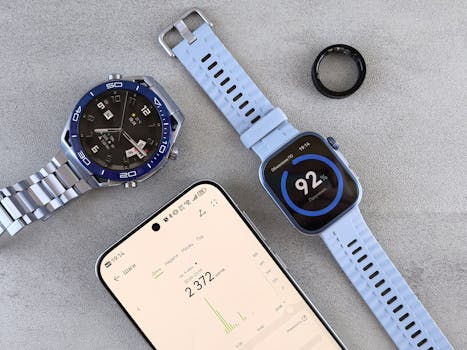

Step-by-step: the wearable HRV accuracy validation protocol

Follow these steps in order. Don’t rush. The protocol is designed to separate “sensor problems” from “physiology changes.”

Step 1: Perform a baseline fit and signal quality check (5–10 minutes)

Before you start collecting validation data, confirm you can get stable readings.

1. Put the wearable on using your normal placement.
2. Start a recording in your app (or begin a session) and sit quietly for 5 minutes.
3. Watch for obvious issues: missing beats, irregular HR spikes, or HRV not updating.
4. If your device shows a signal quality indicator, aim for “good” or “excellent.”
5. If you’re using a chest strap for reference, ensure good electrode contact and correct strap tension.

Practical example: If you’re validating a wrist device, you’ll often see unstable HRV when the watch is too loose or when the wrist is cold. Warm your hands, tighten slightly, and try again.

Step 2: Collect a controlled baseline segment (10 minutes)

Now you need a repeatable baseline to compare against later.

1. Choose a seated position with back supported.
2. Minimize movement. Keep your jaw relaxed and avoid talking.
3. Record for 10 minutes.
4. Note the time and any events (phone notifications, standing up, coughing).
5. Mark a “quiet window” for analysis. If your app provides HRV windows (like 1–5 minute segments), use the same window length each time.

For many wearables, HRV is calculated over short windows. If your device computes “nightly HRV,” you can still capture a daytime segment, but use the device’s own HRV windows if available.

Step 3: Validate response to a known HRV change (challenge session)

HRV doesn’t change randomly. You can create a controlled change using breathing and/or a light physiological stressor. Choose one challenge and repeat it consistently across days.

Option A (breathing challenge): Controlled paced breathing tends to alter HRV. Use it if your wearable supports short-window HRV updates.

Option B (posture change): Switching from lying to standing can change autonomic balance. Use it if you want something simpler and lower-risk.

Step 3A: Breathing challenge (12–15 minutes total)

1. Start with 3 minutes of normal breathing (baseline within the same session).
2. Then do paced breathing at 6 breaths per minute (10 seconds inhale + 10 seconds exhale) for 6 minutes.
3. Finish with 3–6 minutes of normal breathing to observe recovery.
4. Keep your posture and device placement identical.
5. Record the session continuously.

What you’re looking for: HRV should shift in a direction consistent with the breathing intervention, and then partially return during recovery. The magnitude varies by person and by metric.

Step 3B: Posture challenge (10–12 minutes total)

1. Lie down quietly for 5 minutes.
2. Stand up slowly and remain still for 5 minutes.
3. Optionally return to lying for 2 minutes to check recovery.

What you’re looking for: HRV typically decreases with standing compared to lying. If your wearable shows the opposite consistently, you need to inspect signal quality and beat filtering.

Step 4: Repeat baseline and challenge on separate days (minimum 3 cycles)

Repeat Step 2 and Step 3 at least 3 times over 7–10 days. This is where “accuracy” becomes practical.

1. Day 1: baseline + challenge
2. Day 3: baseline + challenge
3. Day 7: baseline + challenge

If you’re doing nightly HRV validation, also capture your nightly HRV on those days.

Practical example: If your wearable’s nightly HRV swings wildly despite similar sleep duration and consistent placement, that suggests a measurement stability issue (fit, motion, or artifact filtering), not just biology.

Step 5: Create a repeatability check using within-device consistency

You’re validating that your wearable can reproduce its own measurements under similar conditions.

1. From each baseline segment, extract the HRV value(s) for the same window length (for example, the middle 5 minutes of the 10-minute baseline).
2. Compare baseline HRV across the 3 days.
3. Track whether baseline values fall into a consistent range.
4. Also compare the challenge-to-baseline shift. Does breathing or posture reliably produce the expected change?

Don’t demand identical numbers. HRV is inherently variable. But you should see a consistent pattern: baseline stays “ballpark stable,” and the challenge produces a directional shift.

If your baseline HRV is all over the place while signal quality was “good,” you may need to adjust fit, reduce movement, or change how you segment your analysis window.

Step 6: Cross-check with an external reference (where possible)

If you have an ECG or a chest-strap reference that outputs R-R intervals, use it to validate the wearable’s beat detection and HRV computation.

1. On at least 2 of your validation days, record simultaneously with the reference method.
2. Align the start time of both recordings (within 10–20 seconds is usually enough for manual alignment).
3. Use the same posture and breathing protocol for both devices.
4. Export HRV or R-R data from both sources if your apps allow it.
5. Compute HRV using the same metric definition if possible (for example, RMSSD from R-R intervals).

If you can’t compute exactly the same metric, focus on beat-to-beat plausibility and trend alignment. The reference is to help you identify whether the wearable’s HRV is driven by real physiology or by artifact.

Step 7: Inspect artifact behavior and missing data patterns

Accuracy problems often show up as artifact handling issues. You want to know whether the wearable is silently dropping beats or smoothing too aggressively.

1. Review the sensor quality logs (if available).
2. Look for periods where HR jumps abruptly or HRV updates become erratic.
3. Check whether HRV is calculated from enough usable beats for the device’s method.
4. Note any “no data” gaps and correlate them with movement, cold skin, or poor contact.

Practical example: During a standing challenge, if your wrist wearable shows stable HRV in lying but “flatlines” or becomes erratic in standing, that often indicates motion artifacts. A chest strap reference may show a clearer beat stream in that scenario.

Step 8: Determine your personal “interpretation thresholds”

After you confirm repeatability, you can set thresholds for action. This is where validation becomes useful.

1. Use your baseline distribution from the 3-day baseline segments.
2. Pick a conservative threshold based on variability. For example, if baseline HRV typically varies within a ±15–25% band, treat changes beyond that band as meaningful (for your device and conditions).
3. Apply the same threshold logic to nightly HRV if you’re using sleep tracking.
4. Validate your threshold by checking whether your challenge sessions show changes larger than typical noise.

Be conservative. If you set thresholds too tight, normal day-to-day variability will trigger false “recovery alerts.”

Common mistakes that break HRV validation

Most failed validation attempts aren’t because HRV is “unmeasurable.” They’re because the protocol accidentally introduces uncontrolled variables.

• Changing device fit mid-study: Even small wrist placement changes can alter sensor contact and beat detection. Keep placement consistent.
• Testing right after caffeine or intense exercise: HRV shifts with autonomic state. Avoid caffeine for 6–8 hours and intense exercise for 12–24 hours before baseline days.
• Moving during the baseline: HRV is sensitive to motion artifacts. During the 10-minute baseline, keep still and avoid talking.
• Comparing different HRV windows: Don’t compare a nightly HRV number to a 30-second daytime HRV segment. Use consistent segmentation.
• Switching metrics: RMSSD vs SDNN vs proprietary “HRV score.” Validate one metric at a time.
• Assuming “more data” means “more accurate”: If the wearable is filtering heavily, you may get stable-looking numbers that are actually artifact-driven. Inspect missing data and quality indicators.
• Using only one day: HRV varies. Run at least 3 cycles across 7–10 days before concluding accuracy problems.

If you notice inconsistent results, don’t immediately blame the algorithm. First check fit, temperature, motion, and your analysis window.

Additional practical tips and optimisation advice

This section helps you get cleaner signals and more actionable results without turning the process into a full-time research project.

Optimise sensor contact for wrist wearables

• Wear it snugly: You should be able to slide it slightly, but it shouldn’t move around during stillness.
• Avoid cold skin: If your hands are cold, warm up before tests. Cold can reduce signal quality.
• Try a consistent wrist position: Many people find the best spot slightly above the wrist bone. Keep it consistent.
• Check watch tightness after you sit down: Don’t adjust mid-session unless you note it.

Optimise your breathing and posture protocol

• Use the same breathing pace every time: For paced breathing, stick to 6 breaths per minute unless your reference protocol says otherwise.
• Keep your mouth closed if possible: Mouth breathing can change airflow and comfort, which can affect physiology.
• Stay still during transitions: If you stand up for the posture challenge, do it slowly and then remain motionless.

Use a repeatable “data capture checklist”

Before each validation session, run a quick checklist in your notes app:

• Time of day
• Caffeine in last 8 hours (yes/no)
• Alcohol in last 24 hours (yes/no)
• Exercise in last 24 hours (light/moderate/intense)
• Sleep quality last night (1–5)
• Device placement (same spot as previous day?)
• Any interruptions (phone call, coughing)

This makes it much easier to interpret why HRV changed.

Soft integration: pair wrist tracking with a chest strap for calibration sessions

If your main wearable is a wrist device, you can keep your day-to-day tracking simple while using a chest strap during your validation days. The chest strap can improve beat detection stability during stillness and movement, which helps you understand whether wrist artifacts are driving errors.

For example, during your posture challenge, you can record simultaneously for 10–15 minutes. If the reference shows a clear HRV shift and your wrist device does not, you likely have a sensor-quality or artifact-filtering limitation for that scenario.

Many people choose this approach because it’s practical: you’re not wearing a strap all the time, but you’re using it to validate interpretation.

Build a “confidence score” for your HRV interpretation

Instead of treating every HRV number as equally trustworthy, assign a simple confidence label based on your validation observations.

• High confidence: Signal quality was consistently good, and your HRV changes match your validated physiological direction.
• Medium confidence: Minor signal quality issues appeared, but the HRV trend still looks plausible.
• Low confidence: Missing data, frequent spikes, or HRV flatlines occurred during the analysis window.

This helps you avoid overreacting when the wearable is clearly struggling.

Use “recovery confirmation” rather than chasing single-day anomalies

HRV can drop for many reasons: stress, poor sleep, dehydration, illness, or even a device fit change. If your HRV drops sharply, don’t immediately conclude it’s a device failure.

Instead, confirm with recovery behavior:

1. Check whether your next baseline day returns toward your established range.
2. Confirm that your next challenge session still produces the expected shift.
3. If both fail, then investigate sensor contact and artifact handling.

This turns validation into an ongoing quality loop rather than a one-time test.

Practical scenario: validating HRV for training readiness

Imagine you train 5 days per week and you use nightly HRV to decide whether to go hard or take it easy. Here’s how you’d apply the protocol.

1. Baseline (3 nights): Keep bedtime within 1 hour, avoid caffeine after noon, and record nightly HRV. Ensure the watch is snug and placed consistently.
2. Challenge sessions (2 times): Do paced breathing at 6 breaths per minute for 6 minutes after dinner on two different days, while recording daytime HRV windows.
3. Cross-check (optional but helpful): On one challenge day, also record with a chest strap for 10–15 minutes to see whether the wrist device shows the expected HRV shift.
4. Threshold setting: Calculate your typical nightly HRV variability. If your baseline range is stable within about ±20%, treat a drop beyond that as a readiness flag.
5. Recovery confirmation: When HRV drops, monitor whether it rebounds on the next night under similar conditions. If it rebounds, you interpret it as physiology. If it stays erratic while signal quality is poor, you treat it as measurement uncertainty.

This scenario keeps the process practical: you validate enough to make decisions, but you don’t overfit to a single number.

Optimise for real-world use without losing accuracy

Once you validate, you should simplify your day-to-day process while preserving reliability:

• Keep your wearable placement consistent across days.
• Use the same metric and the same window type (nightly vs daytime).
• When you move a lot, treat HRV values as lower confidence unless your validation showed stable performance in that scenario.
• If your app supports it, review signal quality indicators and avoid decision-making when quality is poor.

If you ever change bands, swap to a different wrist, or update firmware, re-run the baseline check for 1–2 sessions. Small changes can affect sensor contact and processing.

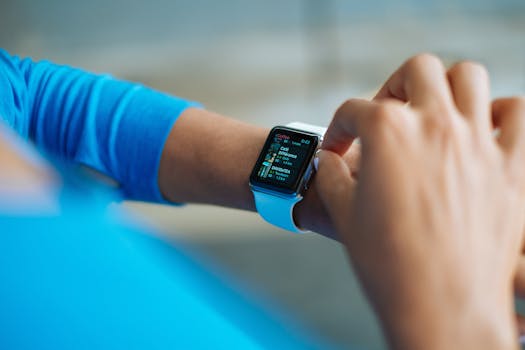

Wrap your protocol into a repeatable workflow

A wearable HRV accuracy validation protocol is only valuable if you can repeat it and use the results. Your final output should be a small set of practical rules you actually follow:

• What HRV metric you trust (and what you ignore)
• Which conditions produce reliable readings for your device
• How you interpret changes beyond your personal variability band
• When you label data as low confidence due to artifacts or missing beats

When you follow these steps consistently, you’ll stop guessing. You’ll know whether your wearable is measuring HRV in a way that’s stable enough for your goals—and you’ll be able to explain your own trends with more confidence.
